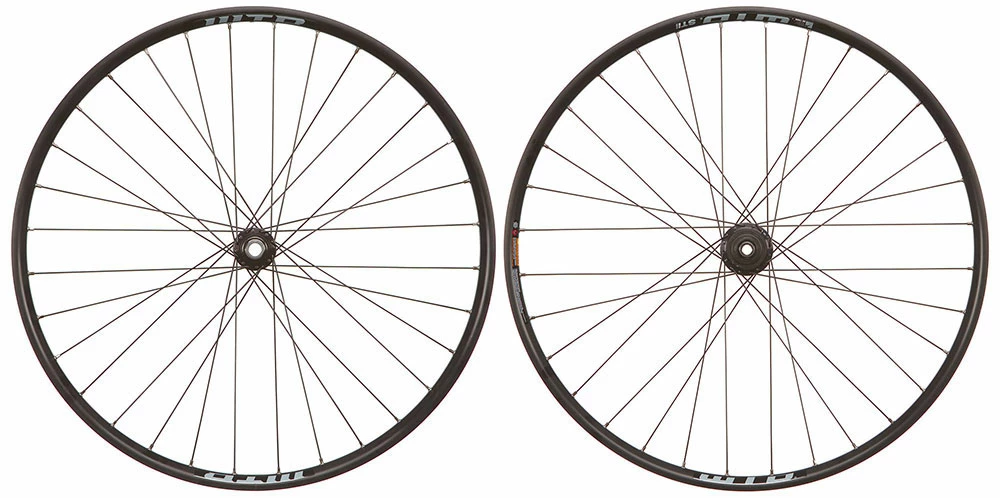

Shimano Custom Made 27.5″ XT M8110 Micro Spline / WTB ST Light I25 Disc Wheel Set

Custom Made wheelset from high quality components – These include WTB ST Light i25 aluminum rims, Shimano XT HB-M8110 / FH-M8110 hubs, 12-speed Micro-Spline freehub body, Center-Lock disc mounts and 15 x 100 mm / 12 x 142 mm thru axles design.

---

Product features – 27.5″ XT M8110 Micro Spline / WTB ST Light i25 Disc Wheel Set 15×100 / 12×142

• Use: MTB
• Wheel size: 27.5″
• Brake type: Disc Center-Lock
• Axle system: Front 15 x 100mm / Rear 12 x 142mm
• Freehub body: Shimano 12-speed Micro-Spline
• Tire type: Clincher / UST tubeless compatible
• Tire width: 35mm to 70mm
• Max. System weight: 120kg (body weight + bike + equipment)

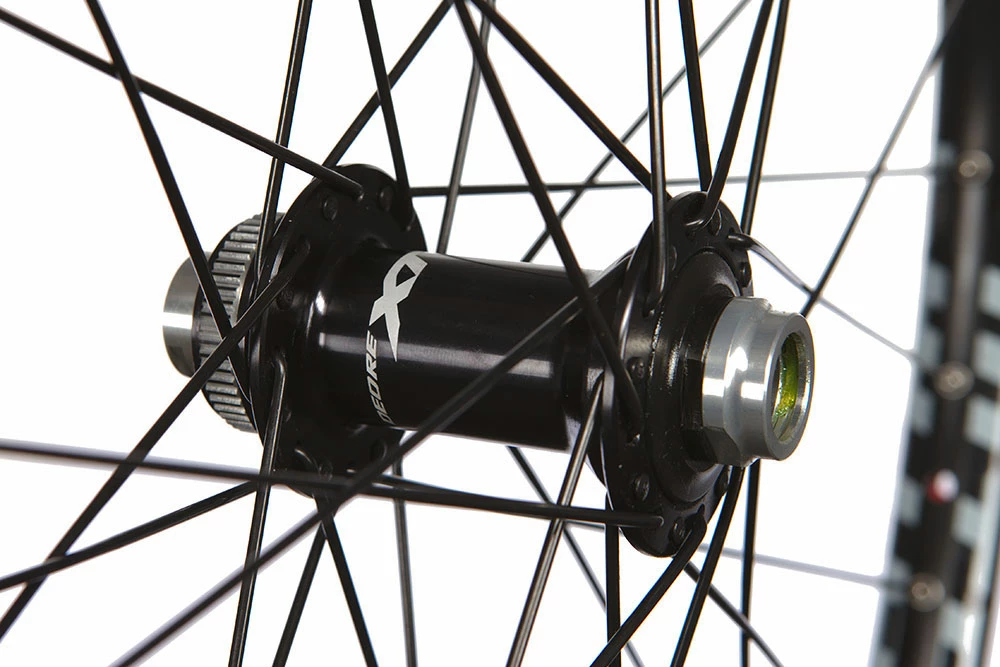

• Front Wheel Hub
  • Model: Shimano XT HB-M8110
  • Spokes: 32 hole
  • Brake type: Center-Lock Disc
  • Hub: Labyrinth and contact seals
  • Type: E-Thru Axle
  • Axle length: 15x100mm

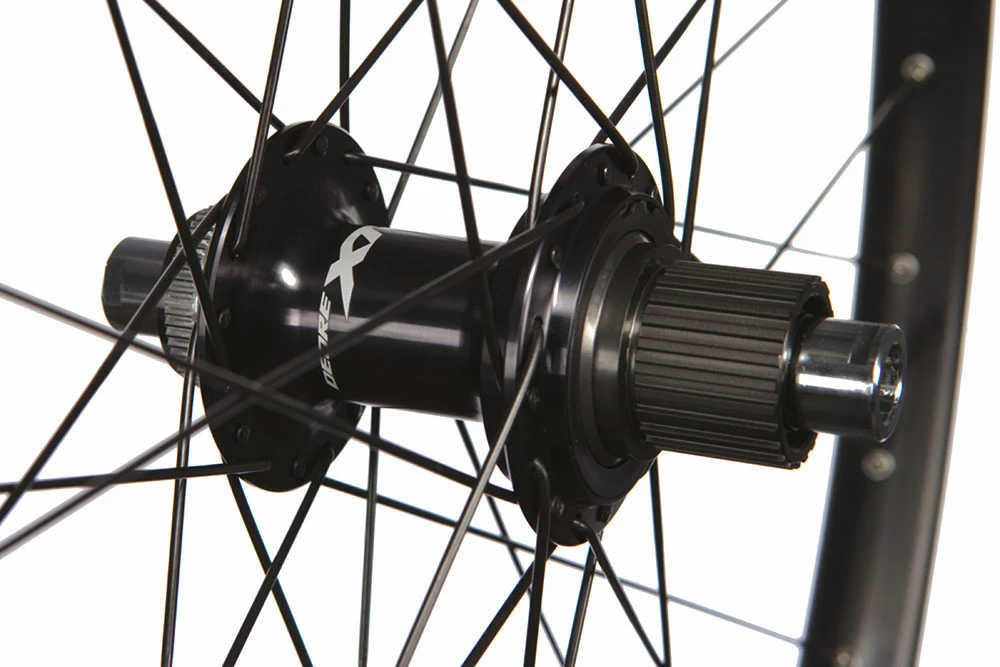

• Rear Wheel Hub
  • Model: Shimano XT FH-M8110
  • Freehub body: 12-fach Micro-Spline
  • Brake type: Center-Lock Disc
  • Hub: Labyrinth and contact seals
  • Type: E-Thru Axle
  • Axle length: 12x142mm

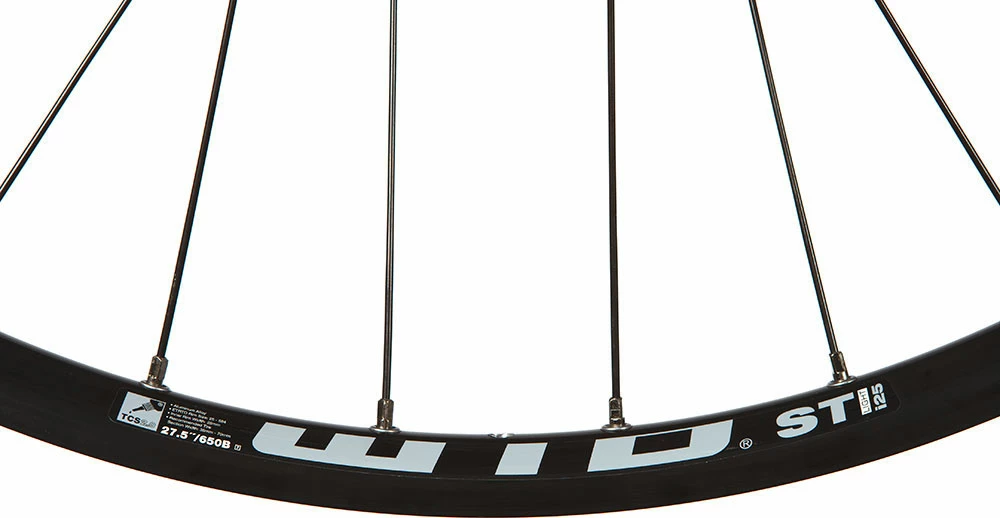

• Rims
  • Model: WTB ST Light i25
  • Size: 27.5″
  • Dimension: 584x25C
  • Type: Clincher / UST tubeless compatible
  • Valve hole: 6.5mm
• Spokes and nipples
  • DT Swiss Competition 2.0 black
  • Brass nipples, silver

Weight

• approx. 900g (front wheel)
• approx. 1050g (rear wheel)
• approx. 1950g (wheel set)

---

Scope of delivery

• 1 Front Wheel 27.5″ Shimano XT Disc Center-Lock HB-M8110 Hub 15x100mm with WTB ST Light i25 Disc Rim
• 1 Rear Wheel 27.5″ Shimano XT Disc Center-Lock FH-M8110 Hub 12x142mm with WTB ST Light i25 Disc Rim

Thru Axles not included!

---

Technologies

Cup & Cone Bearing
Angular contact bearings of the cup & cone type offer greater strength than sealed cartridge industrial bearings due their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearings also allow easier maintenance, adjustability and serviceability.

Center Lock System
The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

Micro-Spline
MICRO SPLINE delivers lightweight aluminum FREEHUB body to reduce weight and 10 teeth top gear. Use combination with MICRO SPLINE cassette sprocket and FREEHUB.

Benefits & Features

• Lightweight aluminum MICRO SPLINE FREEHUB seamlessly integrates with small 10-tooth top gears.
• Smaller and more widely distributed splines limit cog damage on lightweight aluminum FREEHUB.
