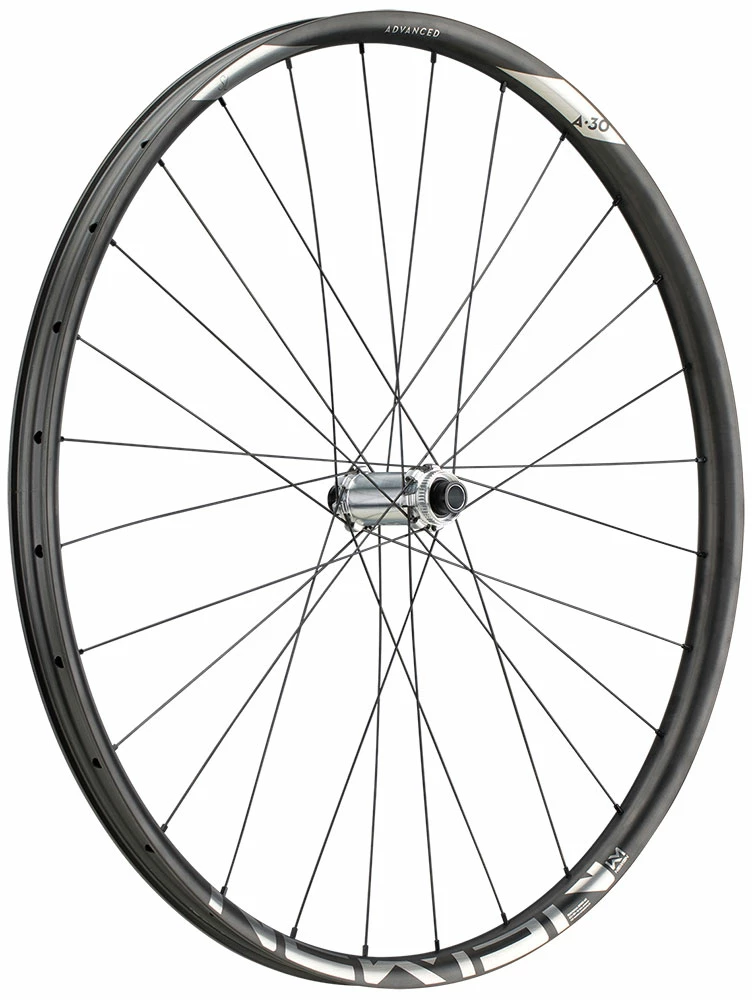

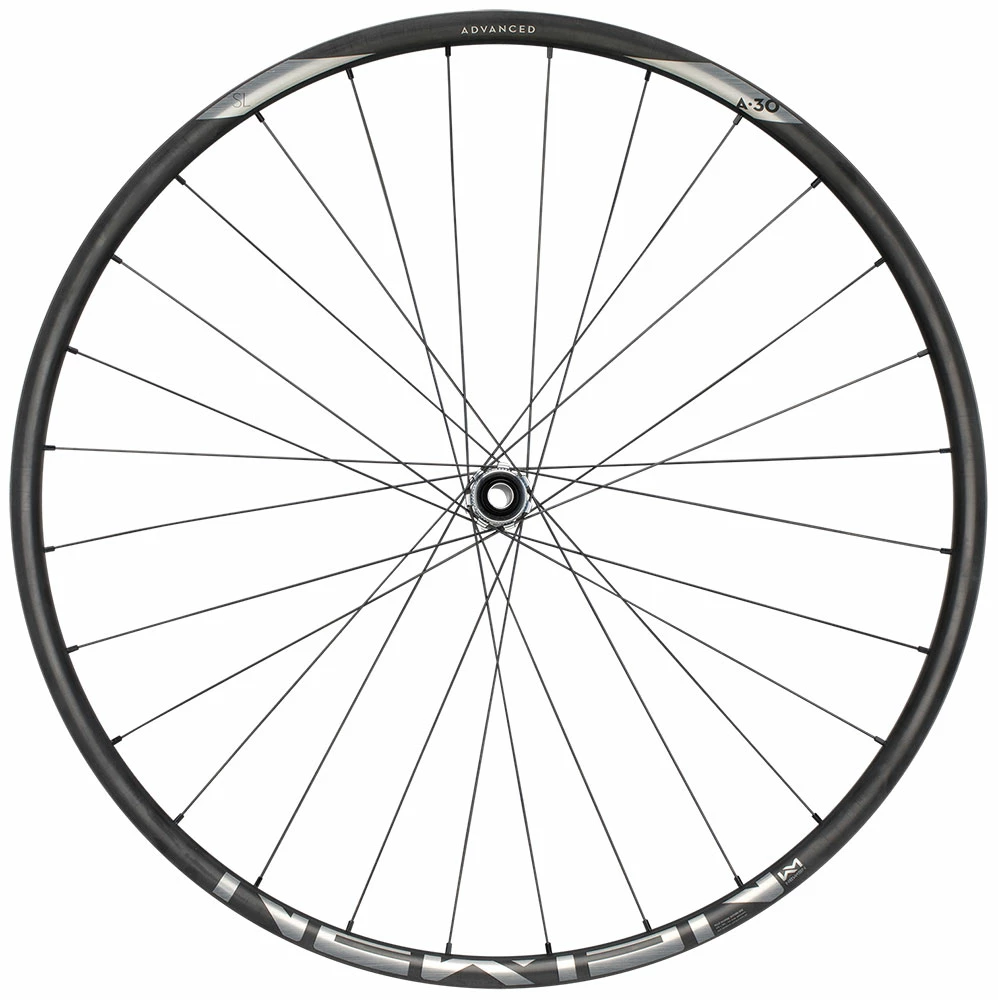

Newmen Advanced SL A.30 29″ Boost Front Wheel

Convinced by the durability of its aluminium rims for enduro use compared to carbon fiber rims, Newmen started developing a 30mm carbon fiber rim initially meant for trailbike use. The result of this project is the NEWMEN Advanced SL A.30 rim with industry leading strength to weight ratio – even strong enough for their EWS riders. Equipped with the new hub technology this is a very light wheel.

Lightweight Enduro Carbon wheel: the Advanced SL A.30 from Newmen

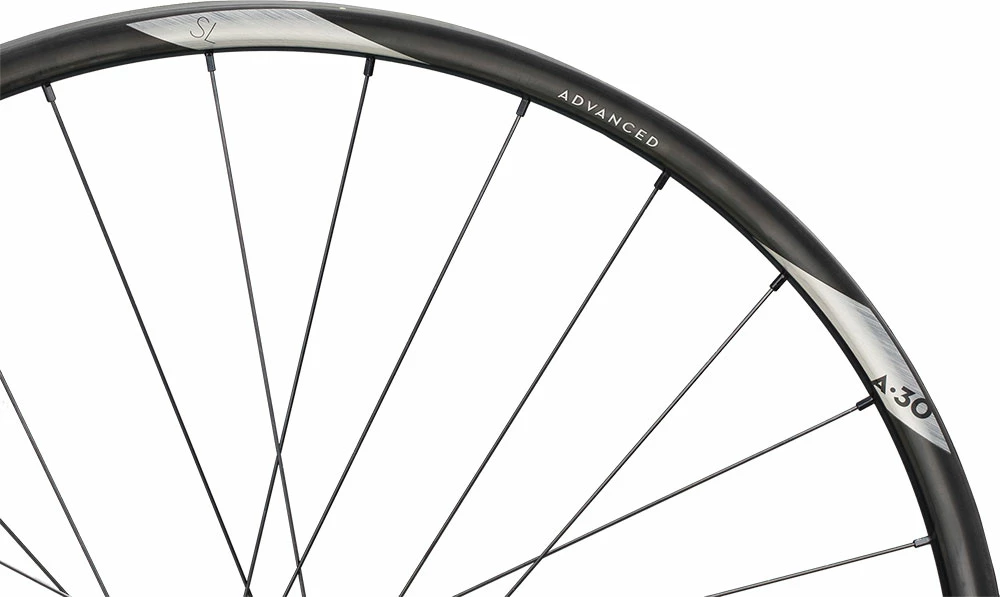

Lower weight than the Evolution (aluminium) SL A.30 rims with higher strength than the Evolution SL E.G.30 rims. High wall thickness around the whole rim profile and a special fibre layup at the rim flanges in combination with 30mm inner width make for a perfect trail and enduro rim. The relatively shallow rim profile with 20mm height in combination with flexible Sapim D-Light spokes grant the same comfort and grip which the aluminium wheels are known for. Additionally the weight is lowered and the durability increased. While during heavy use an aluminium rim always gets small dents and flat spots which let the rim wear out over time, the Advanced SL A.30 still runs perfectly true with even spoke tension after thousands of meters of descending on an enduro bike. On top of that the risk of pinch flats is greatly reduced due to the wide 3.5mm rim flanges.

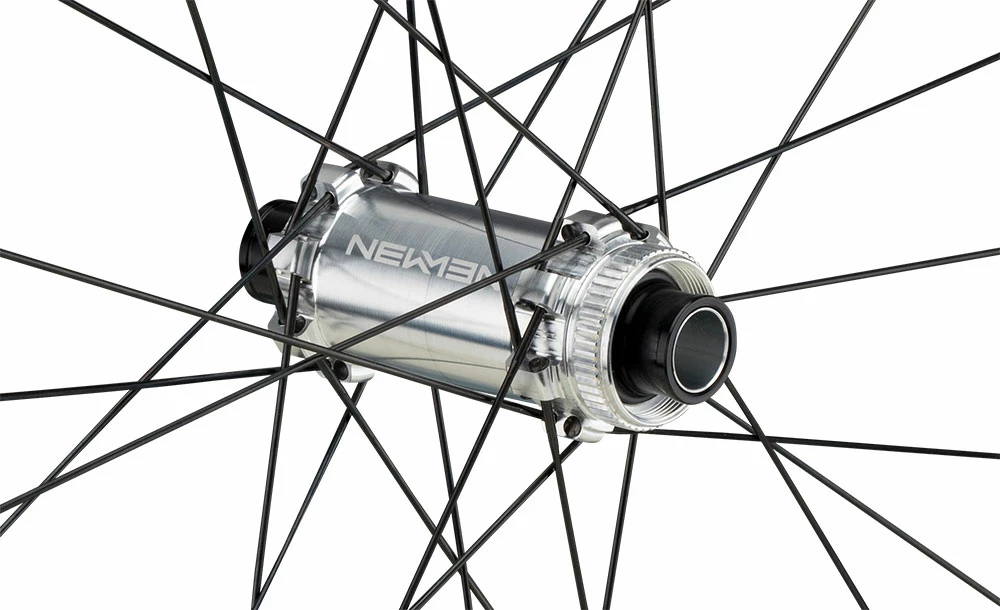

All new Advanced SL wheels are based around the revised Evolution SL hubs. This new design is strong enough for us to officially allow all FADE hubs for E-Bike use. At the sime time Newmen have developed a pawl geometry which reduces noise to a minimum because as we all know: A quiet bike is a fast bike. You can now litereally hear the tires gripping and during mass-start races your competitors won’t hear you closing up. The hubs have double sealed bearings with minimal tolerances which are generously filled with grease because good durability means less hassle and more fun.

---

Product features – Newmen Advanced SL A.30

• Use: Enduro Race
• Size: 29″
• Tubeless Ready: yes
• Diameter: 622mm
• Rim width inner: 30mm
• Required rim tape: 32mm
• Hub: Straightpull
• Axle standard: 15x110mm
• Hole count: 28
• Disc standard: Center Lock
• Spokes: Sapim D-Light
• Lacing: 3-cross
• Max. System weight: 125kg (body weight + bike + equipment)

Material

• Hub: Aluminium 7075
• Rim: UD Carbon

Color

• black

Weight

• 740g (manufacturer information)

---

Scope of delivery

• 1 x Newmen Advanced SL A.30 29″ Boost Frontwheel

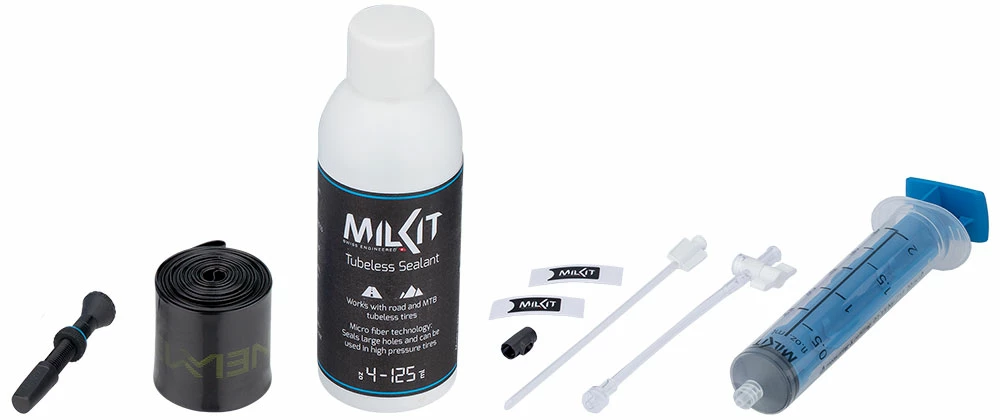

• 1 x Tubeless Strip
• 1 x Milkit Tubeless Set
